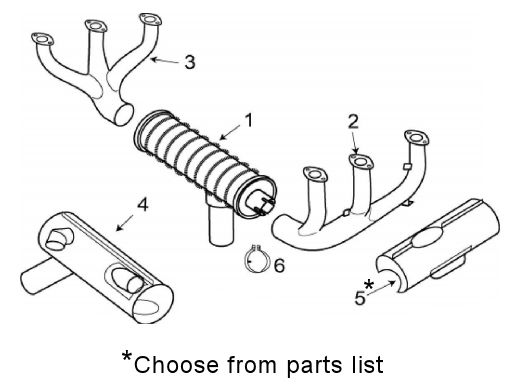

Piper 32-260 Cherokee 6 Exhaust System Itemized Parts List
↙ Front of Aircraft
| Item | Part # | Description | Condition |
|---|---|---|---|
| 01 | A68718-00 | MUFFLER | NEW PMA |
| 02 | A65038-00 | STACK - LH - 2 BOLT FLANGE | NEW PMA |
| 03 | A65039-00 | STACK - RH - 2 BOLT FLANGE | NEW PMA |
| 04 | 69174-00 | SHROUD - MUFFLER - ROUND CUFF - 3" PORT AT ANGLE - 90 DEGREE 2" PORT AND LONG 3" PORT | OVERHAUL |
| 05 | 65041-00 | SHROUD - CARB HEAT S/N 32-1 TO 32-7300008 | OVERHAUL |
| 05 | 69675-00 | SHROUD - CARB HEAT - S/N 32-7300008 AND UP | OVERHAUL |
| 06 | 14235-008 | CLAMP - MUFFLER - PIN - 2.5" | NEW |
| N/S | 77611 | GASKET WITH HARDWARE | NEW |
Check elbow of stack for cracks and heat distortion.
Check muffler baffle or flame tube for distortion.
Make sure that the stacks can be removed from muffler, the ends of the stacks tend to expand and mushroom out.
